Steel Frame Glass Barn Door Package SG02 | Metal Barn Door | Glass Barn Door

$1,199.00

Size
Glass
Quantity

Product Details

Metal Barn Door Package

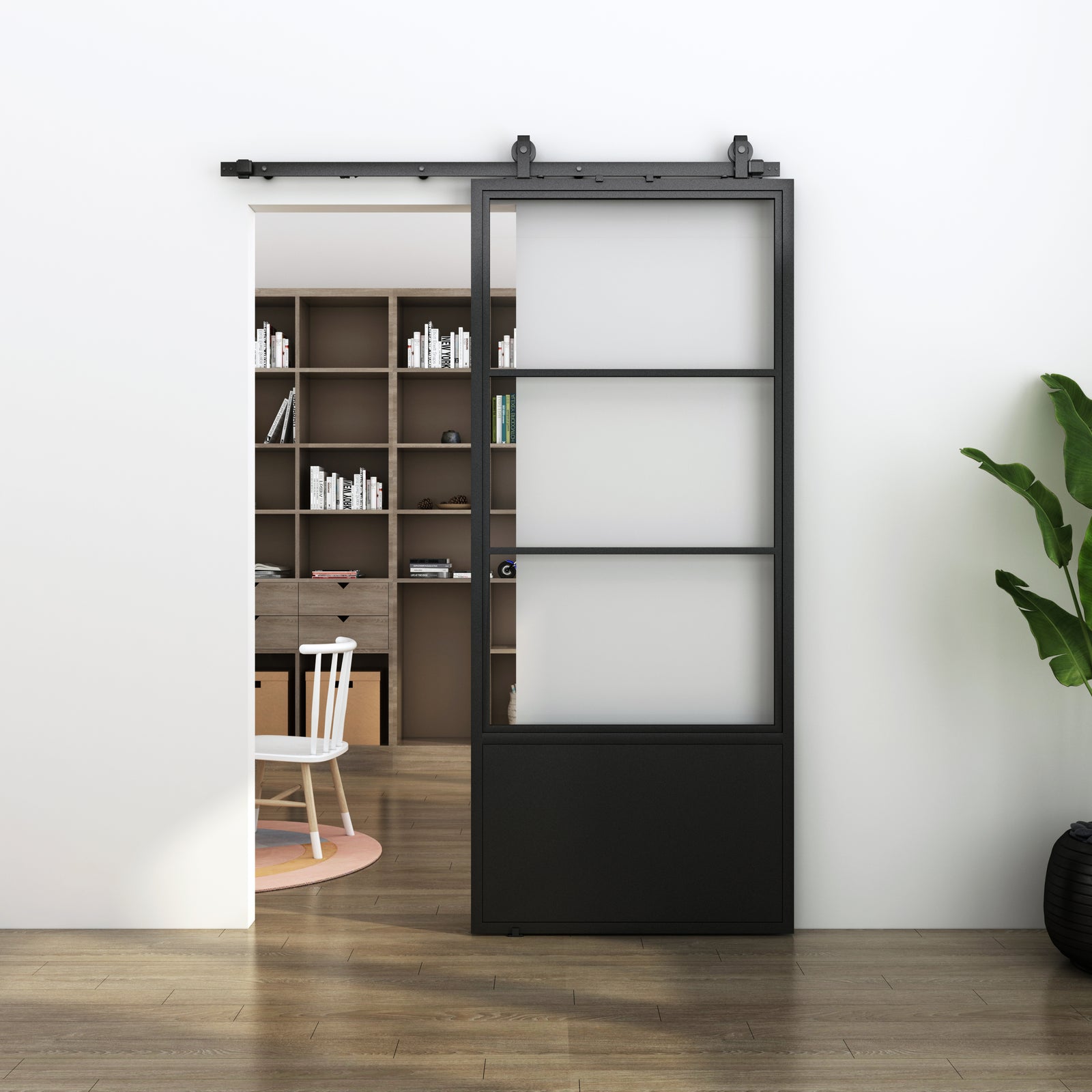

Steel Frame Glass Barn Door Package SG02

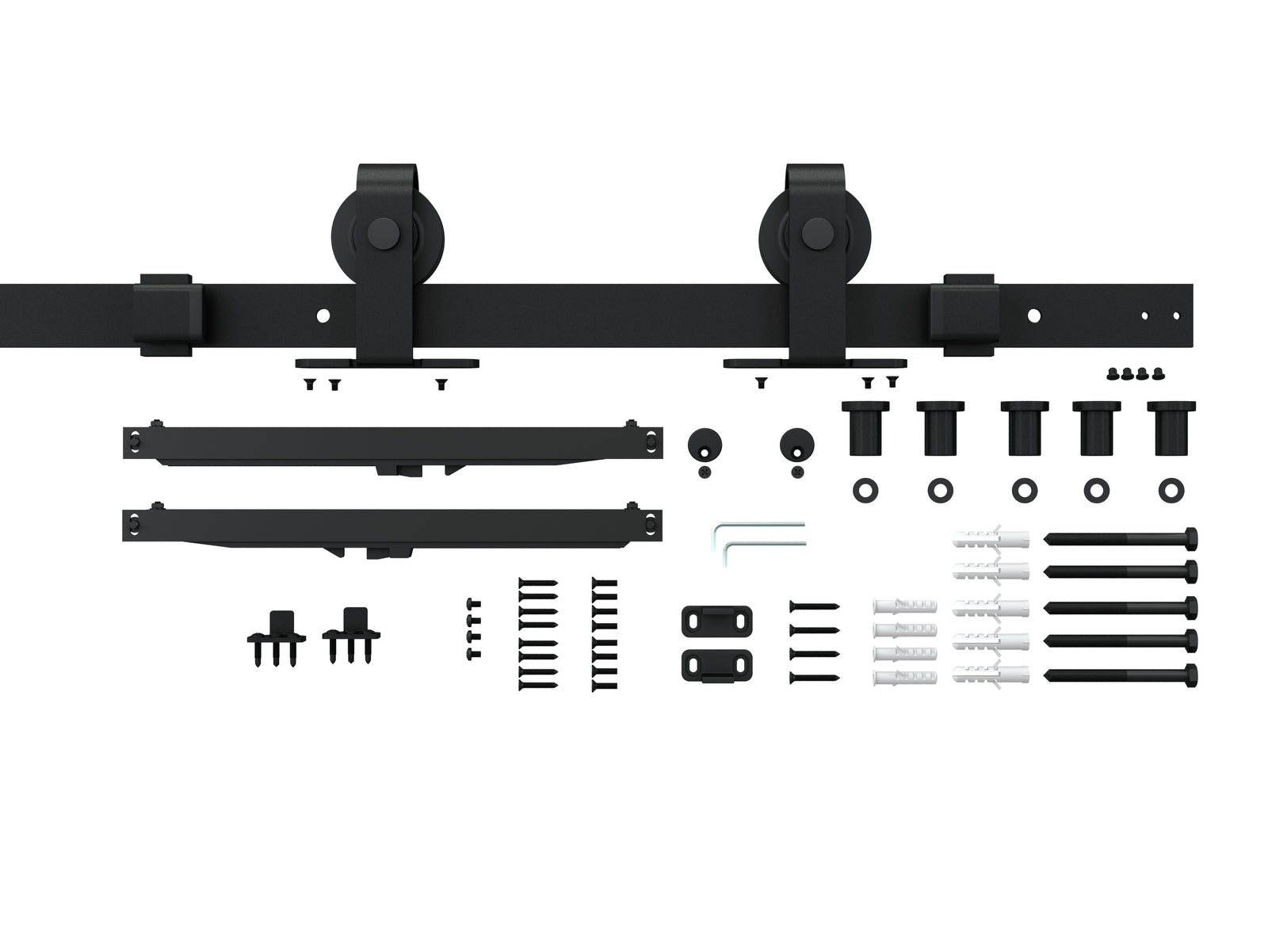

Metal Frame Glass Sliding Door SG02 - Our metal doors are made of carbon steel and 5mm safety frosted/clear/reeded glass, comes with Hardware kit (including soft close/open).

This item contains one single door and hardware kit, you need to purchase two for a double doors system (contact us for a rail joiner);



 Material:  Carbon Steel
Glass Type: Clear/Frosted/Reeded
Colour: Black
Weight: 35kg-70kg
 Available Size
2150x820x32mm
2150x920x32mm
2150x1020x32mm (not available in reeded glass)
2150x1220x32mm (not available in reeded glass)
2150x1520x32mm (not available in reeded glass)
2400x820x32mm (not available in reeded glass)
2400x920x32mm (not available in reeded glass)
2400x1020x32mm (not available in reeded glass)
2400x1220x32mm (not available in reeded glass)



What size steel barn door you need?

Usually the barn door needs to cover the whole opening, it could be the same hight as the opening but must be larger than the width of the opening. For large opening you can consider not only single but also double sliding barn doors

Door Size Opening Width Opening Height Minimum Space Above the Door
2150x830x32MM W < 720MM H < 2150MM 150mm
2150x930x32MM  W < 820MM H < 2150MM 150mm
2150x1030x32MM W < 920MM H < 2150MM 150mm
2150x1220x32MM W < 1120MM H < 2150MM 150mm
2150x1520x32mm W < 1420MM H < 2150MM 150mm
2400x820x32MM W < 720MM H < 2400MM 150mm
2400x920x32MM W < 820MM  H < 2400MM 150mm
2400x1020x32MM W < 920MM H < 2400MM 150mm
2400x1220x32MM W < 1120MM H < 2400MM 150mm

If there is archive around the opening, it is better to fully cover the archives;

Still not sure what size you need? Contact us anytime


Steel Barn Door Hardware Installation

145mm minimum space is required above the door (not the opening).

As we are based in Melbourne, we can do installations for VIC customers, contact us for more details;

To install this system, the wall must be strong enough. For plaster wall we recommend to attach a piece of timber board (For example,  2m rail, we use 2000x42x18mm timber) on the wall first, then screw the rail on the timber board;

Check our Blog Posts ''Latest Cases of Barn Door Installation''



Notes:

All products shown on this website are subject to Aubarndoors’ stocks in Melbourne, Australia;

Postage:

*Please note, don't put in ''PO Box'' as your receiving address*

For barn door orders, we can send it metro area freight depot for free, or send it to the regional area freight depot for a fee, or we can also provide home delivery for a fee. Please check our freight depot list in FAQ, then select metro or regional area freight depot pick-up or home delivery option for the shipping method when checking out.

Please check the items's condition before sign on the delivery proof. If you find the package is damaged please take a picture of both the damaged package and the damaged item inside, contact us within 7 days.

Warranty :

We are Australian barn doors/sliding barn doors/timber barn doors/wooden barn  doors expert , top quality guaranteed, 10 years quality warranty for hardware and  3 years quality warranty for barn doors. (Purchased after 31/3/2024, soft close is not included, terms and conditions apply).



If you have any question, please feel free to contact us at:

P: 1300 227 636

M: 0455 663 777

E: sales@aubarndoor.com.au

View More
