Plank Barn Door D01

$399.00 $479.00


Product Details

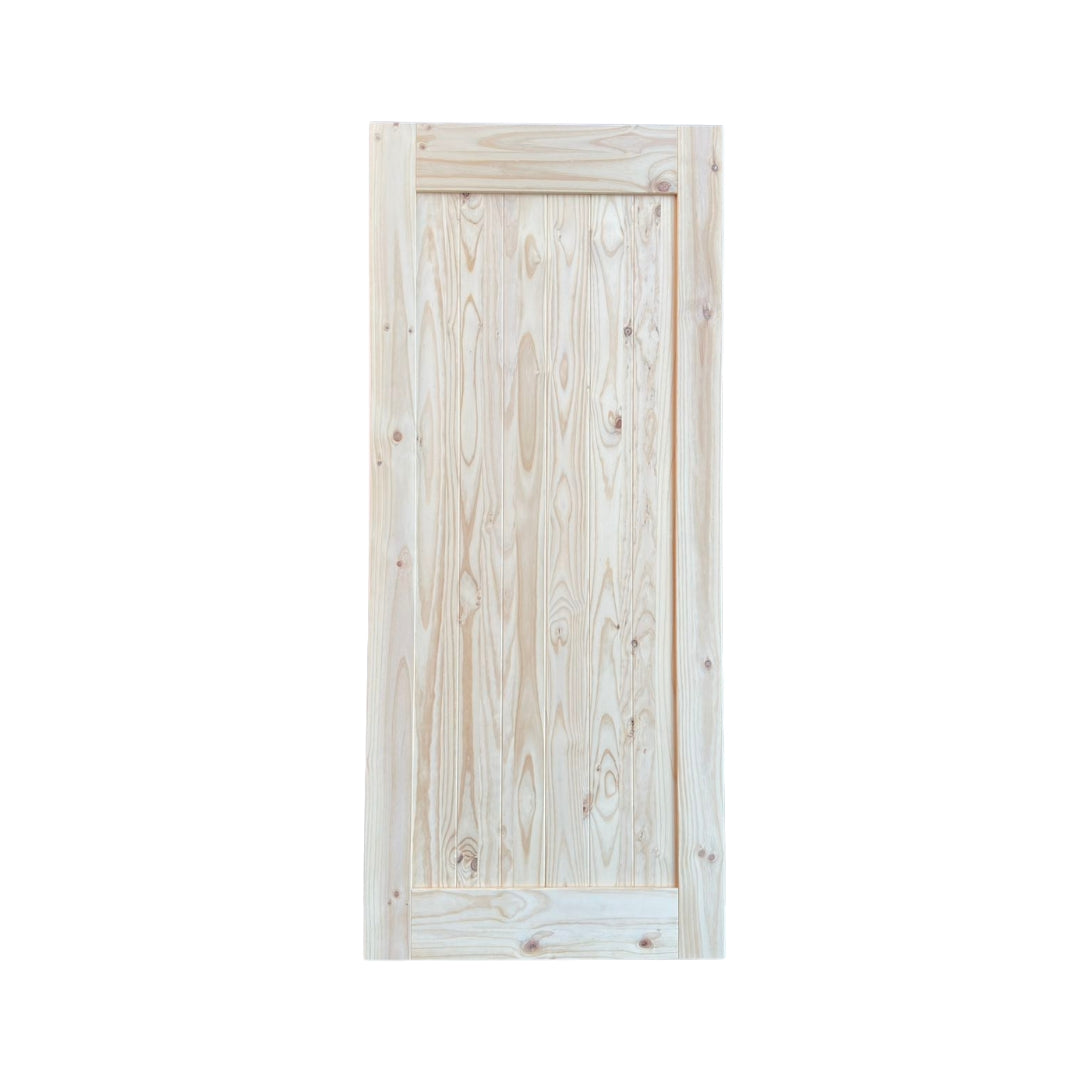

Plank Barn Door D01 | Melbourne Barn Door Expert

Barn Door D01 - actual doors may differ, color may be lighter or deeper, same design on both sides;

It has slot on the bottom for the floor guide, ready to be installed. The barn door only needs to drill the screw holes for the rollers and handles, can be painted directly. Do not cut it by yourself unless communicated with us;

This product only contains the Barn Door, all ancillary hardware needs to be purchased from us separately;

 Material Pine
Weight 40kg
 Available Size


What size barn door you need?

Usually the barn door needs to cover the whole opening, it could be the same hight as the opening but must be larger than the width of the opening. For large opening you can consider not only single but also double sliding barn doors

Door Size Opening Width Opening Height Minimum Space Above the Door
2150x750x40MM W < 650MM H < 2150MM 150mm
2150x820x40MM W < 720MM H < 2150MM 150mm
2150x920x40MM  W < 820MM H < 2150MM 150mm
2150x1020x40MM W < 920MM H < 2150MM 150mm
2120x1220x40MM W < 1120MM H < 2120MM 150mm
2400x830x40MM W < 720MM H < 2400MM 150mm
2400x930x40MM W < 820MM  H < 2400MM 150mm
2400x1030x40MM W < 920MM H < 2400MM 150mm
2400x1230x40MM W < 1120MM H < 2400MM 150mm

If there is archive around the opening, it is better to fully cover the archives;

Still not sure what size you need? Contact us anytime

Barn Door Hardware Installation

As we are based in Melbourne, we can do installations for VIC customers, contact us for more details;

To install this system, the wall must be strong enough. For plaster wall we recommend to attach a piece of timber board (For example,  2m rail, we use 2000x42x18mm timber) on the wall first, then screw the rail on the timber board;

Check our Blog Posts ''Latest Cases of Barn Door Installation''




All products shown on this website are subject to Aubarndoors’ stocks in Melbourne, Australia;

This product only contains the Barn Door, all ancillary hardware needs to be purchased from us separately;

As these raw pine barn doors are made of natural pine, will have knots on the door surface and may have small natural cracks around the knots.

You can paint or stain the raw pine barn doors directly. If you want to paint the barn door to white we recommend you to cover the knots areas with a deeper colour (eg. light gray), otherwise the knots areas may turn into yellow. And we recommend you to fill the natural cracks around the knots before painting.

''20% restocking fee will apply for returning the barn doors, MAKE SURE YOU CHOOSE THE CORRECT SIZE OR CONTACT US FOR HELP'


*Please note, don't put in ''PO Box'' as your receiving address*

For barn door orders, we can send it metro area freight depot for free, or send it to the regional area freight depot for a fee, or we can also provide home delivery for a fee. Please check our freight depot list in FAQ, then select metro or regional area freight depot pick-up or home delivery option for the shipping method when checking out.

Please check the items's condition before sign on the delivery proof. If you find the package is damaged please take a picture of both the damaged package and the damaged item inside, contact us within 7 days.

Warranty :

We are Australian barn doors/sliding barn doors/timber barn doors/wooden barn  doors expert , top quality guaranteed, 10 years quality warranty for hardware and  3 years quality warranty for barn doors. (Purchased after 31/3/2024, soft close is not included, terms and conditions apply).
