D05 Sliding Barn Door Package

$749.00

Size
Quantity

Product Details

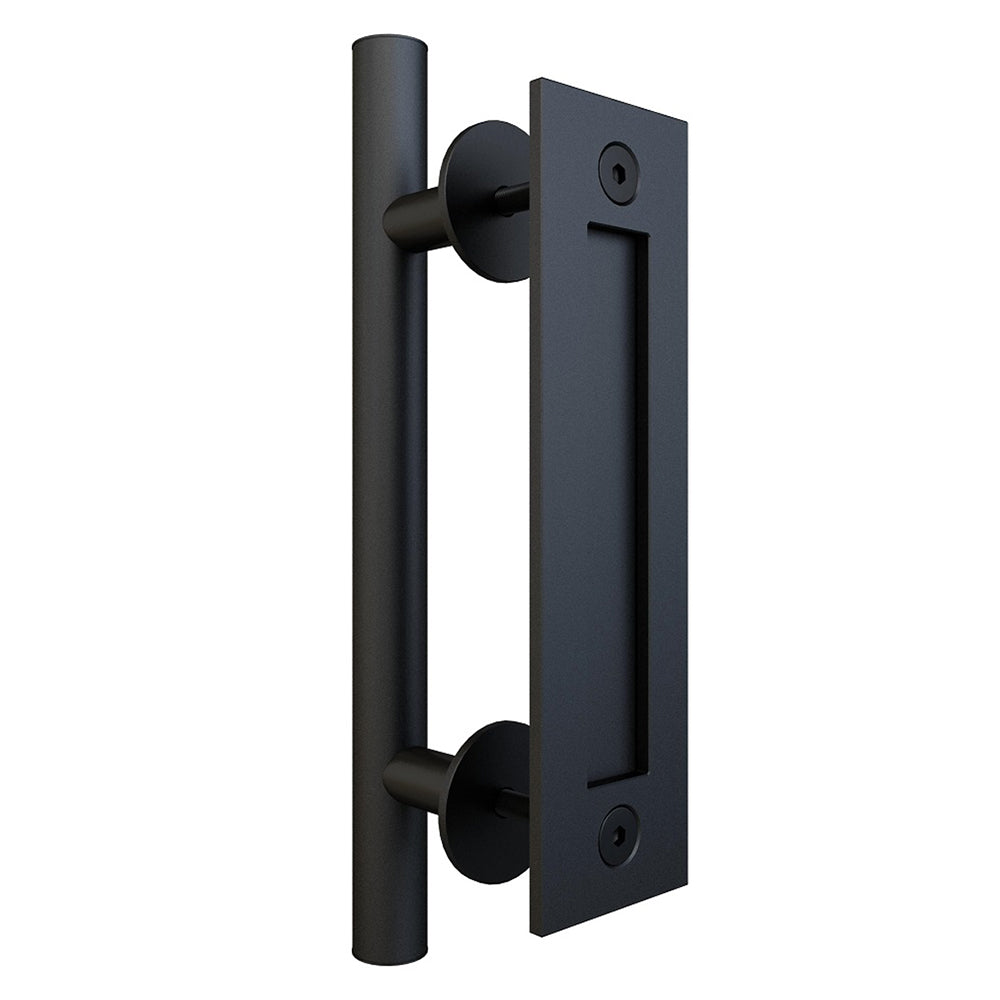

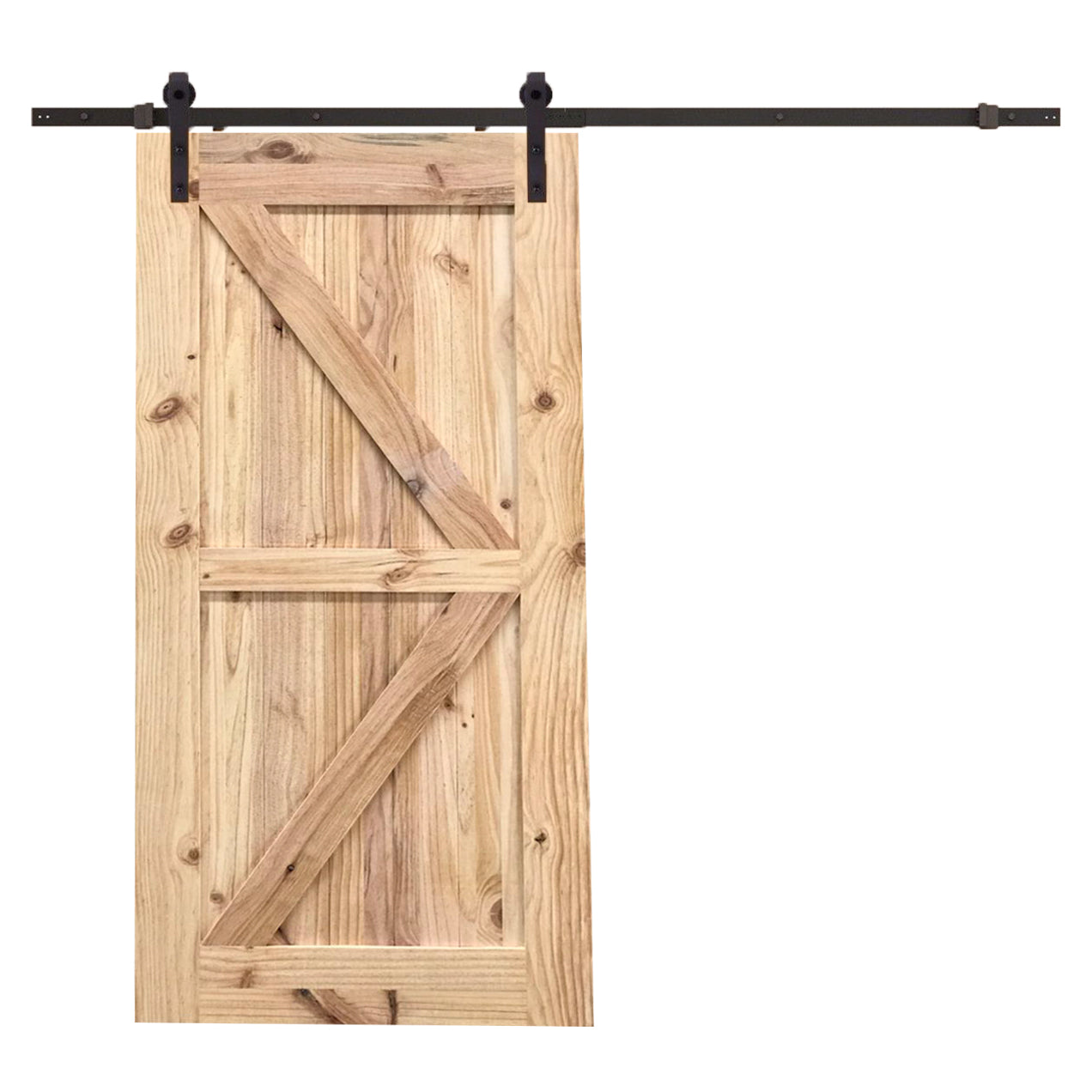

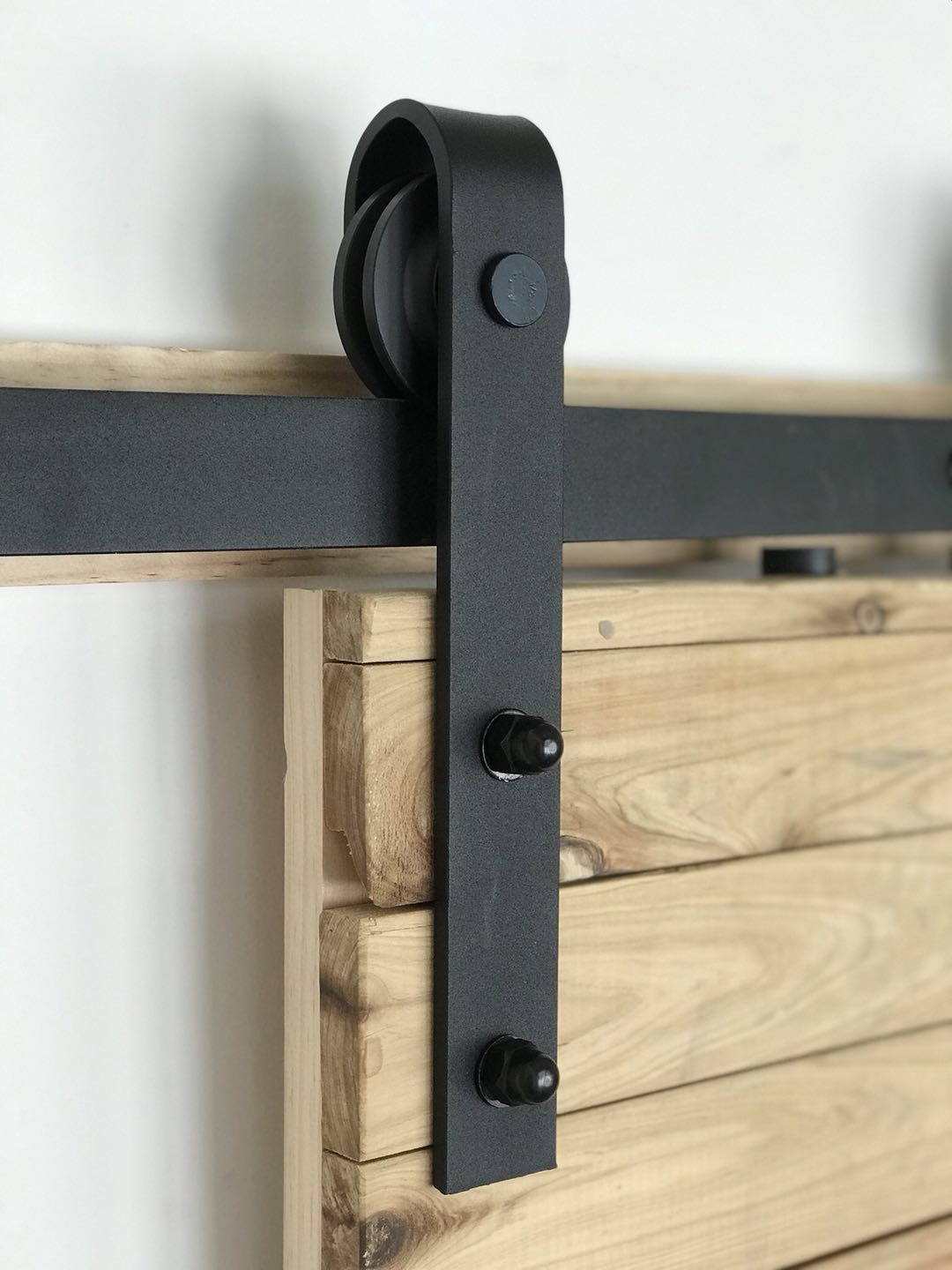

K-Brace Barn Door D05 + BB02 Hardware Kit + BH11 Handles + Soft Close

This package includes the D05 raw pine barn door, BB02 hardware kit, soft close, and BH11 handles which is a complete package for setting up a sliding barn door system;

The door has slot on the bottom for the floor guide, ready to be installed. The barn door only needs to drill the screw holes for the rollers and handles, can be painted directly. Do not cut it by yourself unless communicated with us;

This product only contains the D05 Raw Pine Barn Door, BB02 hardware kit, soft close, and BH11 handles;

 Material Pine
Weight 40kg
 Available Size
2150x750x40mm
2150x820x40mm
2150x920x40mm
2150x1020x40mm
2120x1130x40mm
2120x1230x40mm
2400x830x40mm
2400x930x40mm
2400x1030x40mm
2400x1130x40mm
2400x1230x40mm



What size barn door you need?

Usually the barn door needs to cover the whole opening, it could be the same hight as the opening but must be larger than the width of the opening. For large opening you can consider not only single but also double sliding barn doors

Door Size Opening Width Opening Height Minimum Space Above the Door
2150x750x40MM W < 650MM H < 2150MM 150mm
2150x820x40MM W < 720MM H < 2150MM 150mm
2150x920x40MM  W < 820MM H < 2150MM 150mm
2150x1020x40MM W < 920MM H < 2150MM 150mm
2120x1220x40MM W < 1120MM H < 2120MM 150mm
2400x830x40MM W < 720MM H < 2400MM 150mm
2400x930x40MM W < 820MM  H < 2400MM 150mm
2400x1030x40MM W < 920MM H < 2400MM 150mm
2400x1230x40MM W < 1120MM H < 2400MM 150mm

If there is archive around the opening, it is better to fully cover the archives;

Still not sure what size you need? Contact us anytime

Barn Door Hardware Installation

As we are based in Melbourne, we can do installations for VIC customers, contact us for more details;

To install this system, the wall must be strong enough. For plaster wall we recommend to attach a piece of timber board (For example,  2m rail, we use 2000x42x18mm timber) on the wall first, then screw the rail on the timber board;

Check our Blog Posts ''Latest Cases of Barn Door Installation''

Notes:

All products shown on this website are subject to Aubarndoors’ stocks in Melbourne, Australia;

As these raw pine barn doors are made of natural pine, will have knots on the door surface and may have small natural cracks around the knots.

You can paint or stain the raw pine barn doors directly. If you want to paint the barn door to white we recommend you to cover the knots areas with a deeper colour (eg. light gray), otherwise the knots areas may turn into yellow. And we recommend you to fill the natural cracks around the knots before painting.

''20% restocking fee will apply for returning the barn doors, MAKE SURE YOU CHOOSE THE CORRECT SIZE OR CONTACT US FOR HELP'

Postage:

*Please note, don't put in ''PO Box'' as your receiving address*



For barn door orders will be sent with pallet, we will deliver it to your nearest depot (except business address), collection is needed, please contact us if you need a home delivery.

The postage is for the main city metro in each state, or the nearest depot to you if you live on the farm or outer suburban district  (include WA, NT) , please contact us for a delivery quote before placing the order.

We do delivery to nationwide Australia, orders will be dispatched within 3 business days, delivery usually take 3-7 business days, estimates only, delay may occur due to unexpected issues.

For some regional area customers, even you have selected the home delivery option, collection may still needed, as your address may be outside the courier company's servicing area.

Please check the items's condition before sign on the delivery proof. If you find the package is damaged please take a picture of both the damaged package and the damaged item inside, contact us within 24hrs.

Warranty :

We are Australian barn doors/sliding barn doors/timber barn doors/wooden barn  doors expert , top quality guaranteed, 10 years quality warranty for hardware and  3 years quality warranty for barn doors. (Purchased after 31/3/2024, soft close is not included, terms and conditions apply).
